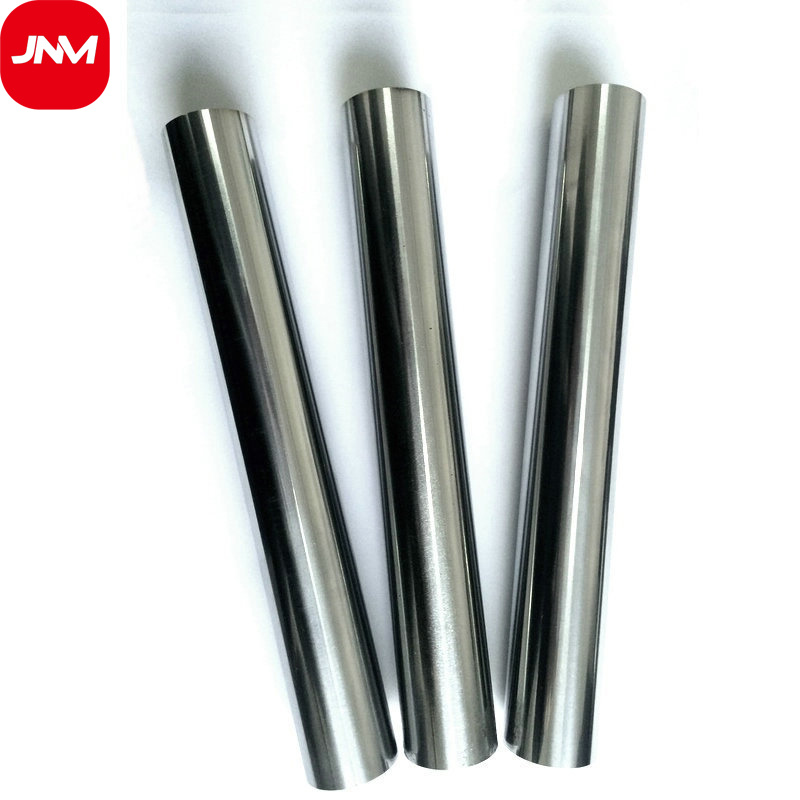

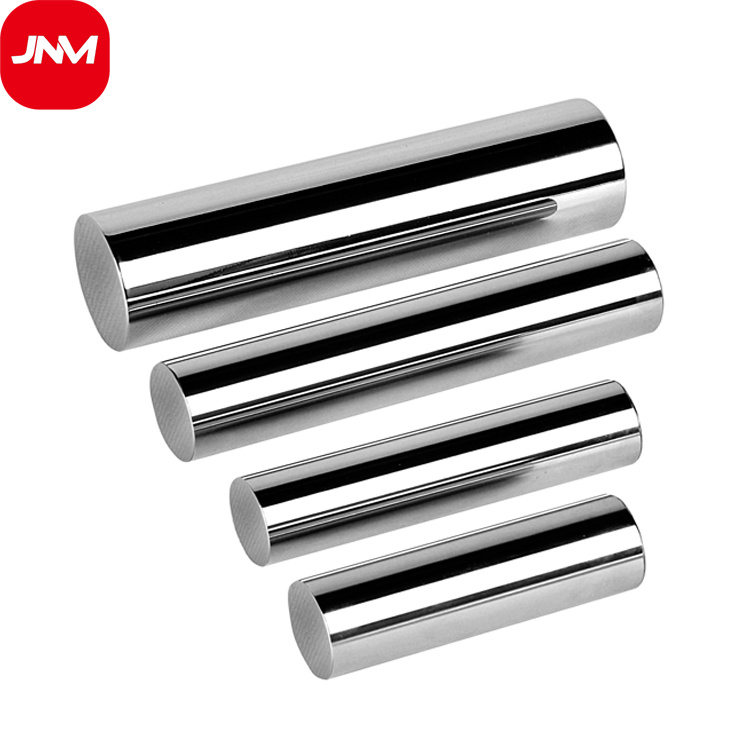

Chrome Plated Piston Rod
Classification:
Chrome Plated Rod
Key words:
Chrome Plated Rod
E-mail：
Tel：
JNM GROUP is a renowned Manufacturer and Supplier of chrome rod, chrome plated rod，hard chrome bar,Hard Chrome Plated Rod, Hydraulic Piston Rod, Induction Hardened Steel Shafts, Linear Motion Bearing Shafts and Honed Tube, Hydraulic Cylinder Barrel, Polished Tube, Honed Pipe, Cold Drawn Tube. The offered products are manufactured using the finest quality steel materials such as Mild Steel, Carbon Steel, Stainless Steel, etc.
These products are manufactured using advanced technology with high precision in compliance with international quality standards. The offered products are highly appreciated by the clients for their features like corrosion resistance, high durability, high tensile strength, smooth surface finish, ductility and high dimensional accuracy.Honed tube and chrome rod these products are available in various specifications and can also be custom designed as per the specifications given by the clients.
Hard chrome bar /Hard Chrome plated Piston Rod
Hard Chrome plated bar is a chromium-plated steel product used primarily as piston rod material in standard hydraulic and pneumatic applications. Hard Chrome plated bar is normally used in conditions of high stress, friction and harsh climactic environments, the quality of the base metal and subsequent surface treatment are of paramount importance. Wear resistance, corrosion resistance, surface smoothness, high yield strength and uniform quality are essential properties of hard chrome bar.Chroming piston rod hydraulic cylinder rod.
Hard Chrome plated bars are generally produced from steel bars combining high strength with excellent machinability and weldability. Tolerance on bar diameter to ISO f7. Common applications are found in agricultural machinery, production equipment, cranes, garbage compactors, lifters etc.
| Brand Name | JNM |
| Material | CK45/C45E/S45C 4140/42CrMo4 40Cr 20MnV6 SAE10V45 ST52 |
| Dimensions size | Φ 6mm-- Φ 360mm |
| Diameter tolerance | ISO f7~f8 |
| Chrome layer thickness | Ø < 20 mm: min. 15 μm Ø ≥ 20 mm: min. 20 μm |
| Surface Roughness | Ra 0.2μm(Max) |
| Surface Hardness | 800HV(Min) |
| Straightness | Ø ≤ 16 mm: 0.3 mm/1000 mm(Max) Ø > 16 mm: 0.2 mm/1000 mm(Max) |
| Standard Length | 3m-9m (or customized by client's requests) |
| Straightness | 0.2/1000mm |
| Application | hydraulic cylinders and pneumatic cylinders |
| Package: | Packed with paper tubes and straw ropes, and packed into wooden boxes |
Product Features
The material of Chrome plated piston rods, hard chrome plated rod, precision linear shaft, hard chrome plated bar and cylinder chrome rod, cylinder piston rod, hydraulic cylinder piston rod and hard chrome bar include SAE1045, CK45, SAE4140, 42CrMo4. Also, we provide stainless cylinder piston rod, such as SUS304, SUS316 and SUS410.
Chrome plated piston rods stand out for their durability, resistance to corrosion, and low friction characteristics, thanks to their high-quality steel or stainless steel base and the application of a chromium coating. A hydraulic piston rod that utilizes a chrome plating or coating on the surface.These rods are essential for the smooth operation of hydraulic and pneumatic systems in various industries.
The chrome treatment provides the rod with improved hardness, wear resistance, and corrosion protection, making it well-suited for use in high-performance hydraulic applications.
Packaging & Delivery
All sells honed tubes and chrome rods, usually shipped by sea. In this way, the shipping packaging of the honed tube and chrome rod should pay attention to rust, moisture and impact resistance.Before shipment, we use anti-rust oil with better salt spray resistance, or choose oil-free anti-rust packaging, such as anti-rust film and anti-rust paper.
The packaging of the chrome rod needs to avoid damage during transportation. Paper tubes and straw ropes are usually used for packaging to ensure the neatness of the piston rod and stored in the warehouse.
After all honed tube and piston rod products are packaged, they are packed into custom wooden boxes and transported to the freight port for loading into containers.
JNM GROUP is a quality-centered company. We implement various quality processes in the process of manufacturing honing tubes and piston rods to ensure that the products delivered to customers are of high quality. Adhering to the tenet of "integrity, gratitude, cooperation", "customer satisfaction, win-win cooperation", through continuous innovation and pragmatic management, our company has formed a stable market foundation and a good industry reputation. Our products are deeply loved by customers in Southeast Asia, the Middle East, Central and South America, Europe and other countries.
