1045 Induction Hardened Chrome Rod
Classification:
Chrome Plated Rod
Key words:
Chrome Plated Rod
E-mail：
Tel：
JNM GROUP is a renowned Manufacturer and Supplier of chrome rod, chrome plated rod，hard chrome bar,Hard Chrome Plated Rod, Hydraulic Piston Rod, Induction Hardened Steel Shafts, Linear Motion Bearing Shafts and Honed Tube, Hydraulic Cylinder Barrel, Polished Tube, Honed Pipe, Cold Drawn Tube. The offered products are manufactured using the finest quality steel materials such as Mild Steel, Carbon Steel, Stainless Steel, etc.
These products are manufactured using advanced technology with high precision in compliance with international quality standards. The offered products are highly appreciated by the clients for their features like corrosion resistance, high durability, high tensile strength, smooth surface finish, ductility and high dimensional accuracy.Honed tube and chrome rod these products are available in various specifications and can also be custom designed as per the specifications given by the clients.
Induction Hardened Chrome Rod
1045 Induction Hardened Hard Chrome Plated Bar
1045 Chrome bar is the most commonly used of the Chrome Bar options as it combines good strength and impact properties and a cost effective solution.
1045 is a medium tensile carbon steel supplied in the turned, induction hardened and straightened, precision ground, polished, chrome plated and final polished condition, with a typical base metal tensile strength of 670 Mpa, an induction hardened case of 3.2mm thick approx. to Rc55-65, plus a typical hard chrome plated surface hardness of HV 800--1000. Characterised by an extremely smooth surface finish with excellent wear and corrosion resistance, supported by an induction hardened case offering greater strength and resistance to mechanical damage.
1045 induction hardened hard chrome plated bar is used extensively by the hydraulic and pneumatic industries, for those applications utilising its high surface hardness and excellent resistance to surface impact.
1045 Chrome Plated Bar is supplied Cold Drawn or Turned, Induction Hardened, ground, chrome plated and polished condition. Chrome plating hardness has a surface hardness of HV 800--1000, and is Induction Hardened to a depth of approximately 3mm and a hardness of 55-65 HRC.
| Brand Name | JNM |
| Material | CK45/C45E/S45C 4140/42CrMo4 40Cr 20MnV6 SAE10V45 ST52 |
| Dimensions size | Φ 6mm-- Φ 360mm |
| Diameter tolerance | ISO f7~f8 |
| Chrome layer thickness | Ø < 20 mm: min. 15 μm Ø ≥ 20 mm: min. 20 μm |
| Surface Roughness | Ra 0.2μm(Max) |
| Surface Hardness | 800HV(Min) |
| Straightness | Ø ≤ 16 mm: 0.3 mm/1000 mm(Max) Ø > 16 mm: 0.2 mm/1000 mm(Max) |
| Standard Length | 3m-9m (or customized by client's requests) |
| Straightness | 0.2/1000mm |
| Application | hydraulic cylinders and pneumatic cylinders |
| Package: | Packed with paper tubes and straw ropes, and packed into wooden boxes |
Product Features
- Common grades steel AISI 1045 / or 10V45 steel
- Inch sizes chrome rod available
- Metric sizes chrome rod available
- Hardness of chrome plating HRC 50-60
- Surface roughness Ra: max 0.20 μm
- Chrome layer thickness：Ø < 20 mm: min. 15 μm
Ø ≥ 20 mm: min. 20 μm - Custom made diameters and chrome thickness available upon request Surface Treatment: Chrome-plated
- Hardening Process: Induction hardening
- Features: High wear and corrosion resistance, durable, maintains a smooth surface over time
- Applications: Hydraulic and pneumatic cylinders, other demanding industrial uses

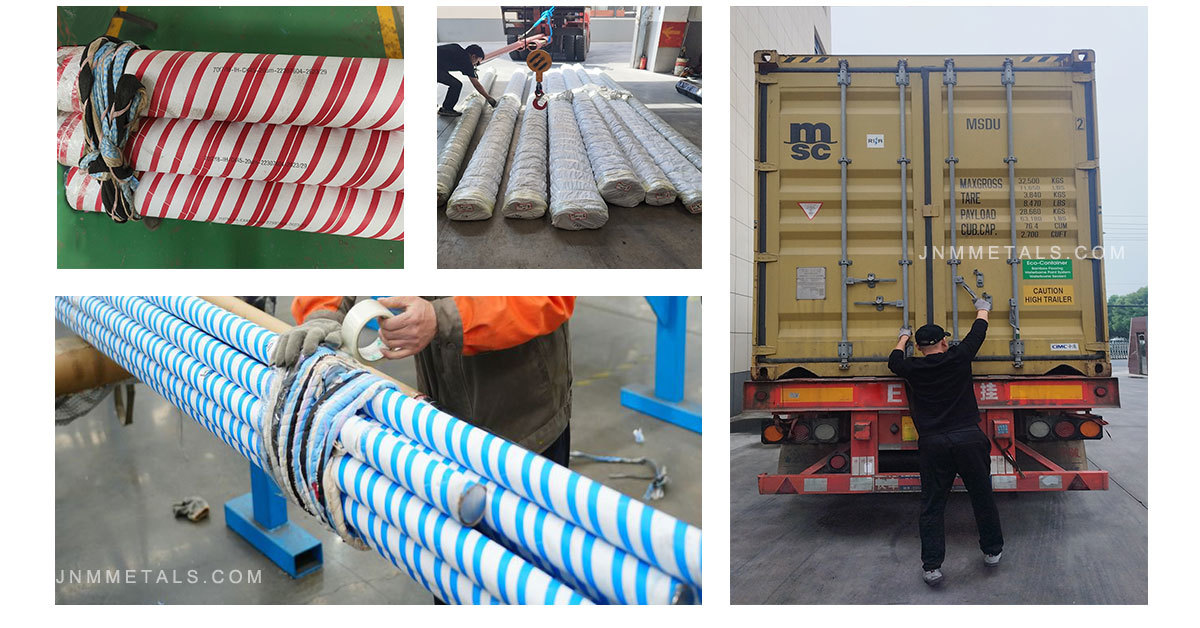

Packaging & Delivery
All sells honed tubes and chrome rods, usually shipped by sea. In this way, the shipping packaging of the honed tube and chrome rod should pay attention to rust, moisture and impact resistance.Before shipment, we use anti-rust oil with better salt spray resistance, or choose oil-free anti-rust packaging, such as anti-rust film and anti-rust paper.
The packaging of the chrome rod needs to avoid damage during transportation. Paper tubes and straw ropes are usually used for packaging to ensure the neatness of the piston rod and stored in the warehouse.
After all honed tube and piston rod products are packaged, they are packed into custom wooden boxes and transported to the freight port for loading into containers.

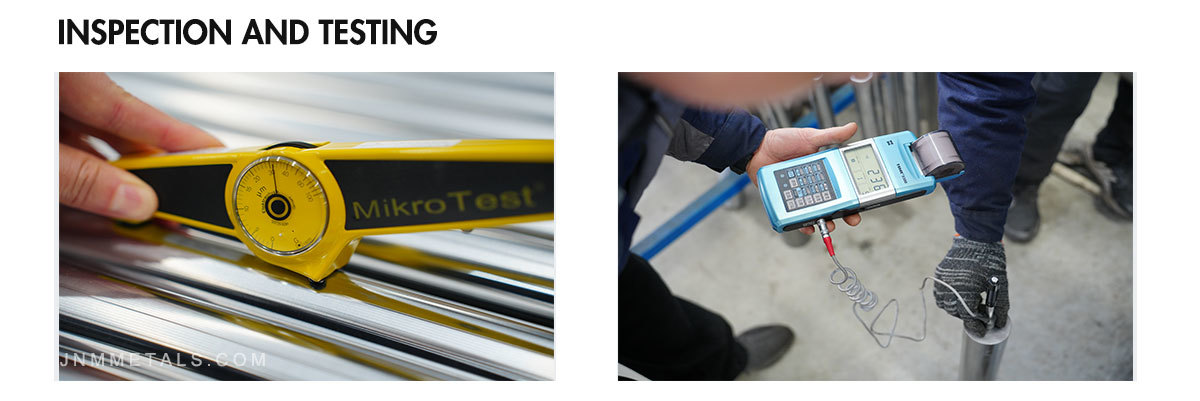

JNM GROUP is a quality-centered company. We implement various quality processes in the process of manufacturing honing tubes and piston rods to ensure that the products delivered to customers are of high quality. Adhering to the tenet of "integrity, gratitude, cooperation", "customer satisfaction, win-win cooperation", through continuous innovation and pragmatic management, our company has formed a stable market foundation and a good industry reputation. Our products are deeply loved by customers in Southeast Asia, the Middle East, Central and South America, Europe and other countries.
