DTH Drill Pipe
Classification:
DTH Drill Pipe
Key words:
DTH Drill Pipe
E-mail：
Tel：
Overview
Essential details
| Condition: | New |
|
Warranty: | 6 Months |
|
| Applicable Industries: | Building Material Shops, Manufacturing Plant |
|
Weight(KG): | 20 |
|
| Video outgoing-inspection: | Provided |
|
Showroom Location: | None |
|
| Marketing Type: | New Product 2022 |
|
Machinery Test Report: | Provided |
|
| Brand Name: | JNM |
|
Type: | Drill Pipe |
|
| Brand Name: | Drilling Tool |
|
Material: | Carbon steel |
|
| Processing Type: | Forging |
|
Use: | Ore Mining |
|
| Product name: | DTH drilling rod Pipe |
|
Application: | Water well |
|
| Thread: | API Standard |
|
Diameter: | 3-5.5inch |
|
| Color: | Black or customized |
|
Length: | 1-12 meter |
|
| Size: | 76/89/102/114/127/140 |
|
Usage: | Ore Mining,water well,oilfield |
|
|
Packing: |
Wooden Case Package |
|
MOQ: |
1 Piece |
Supply Ability
Supply Ability 1000 Piece/Pieces per Month
Packaging & delivery
Packaging Details 1.Packing in bales with steel scrips
2.Plastic packing for each bundle of steel pipes
3.Paving Waterproof Plastics in Containers
4.High-quality desiccant moistureproof
5.Container transport
6. As the customer's requirement.
Port Qingdao / Tianjin / Shanghai
Lead time:
| Quantity(pieces) |
1 - 10 |
11 - 50 |
>50 |
|
Lead time (days) |
20 |
30 |
To be negotiated |
|
Product Parameters |
|||||
|
Rod dia(mm) |
Rod Length(mm) |
Thickness (mm) |
Connect Thread |
Trigger Slot |
|
|
inch |
mm |
||||
|
3 |
76 |
1000-6000 |
5 |
API23/8”REG |
57/64.5 |
|
3 |
76 |
1000-9000 |
8 |
API23/8”REG |
57/64.5 |
|
31/2 |
89 |
1000-6000 |
6 |
API23/8”REG |
70/64 |
|
31/2 |
89 |
1000-9600 |
8 |
API23/8”REG |
70/64 |
|
4 |
102 |
1000-9000 |
10 |
API23/7^REG |
76/89 |
|
41/2 |
114 |
1500-7620 |
6 |
API31/2”REG |
89/95 |
|
41/2 |
114 |
1500-9140 |
8 |
API31/2”REG |
89/95 |
|
41/2 |
114 |
1500-9140 |
10 |
API31/2"REG |
89/95 |
|
41/2 |
114 |
1500-9140 |
18 |
API31/2”REG |
89/95 |
|
5 |
127 |
1500-9500 |
12 |
API31/2”REG |
89 |
|
5 |
127 |
15009 500 |
14 |
API31/2"REG |
89 |
|
51/2 |
140 |
15009 500 |
9 |
AP |4 I/2 REG or 4'FH |
114 |
|
51/2 |
140 |
1500-9500 |
10 |
AP |4 I/2 REG or 4'FH |
114 |
|
51/2 |
140 |
1500-9500 |
12 |
AP |4 I/2 REG or 4'FH |
114 |
DTH drill pipe is used to connect DTH hammer and DTH button bit; They are made of seamless tubes. The drill pipe plays an important role in all DTH hammer drilling, regardless of application, rock type, drilling depth or drilling rig.
According to different applications, drill pipes with different diameters are required. Basically, smaller DTH hammers require smaller DTH drill pipes, and vice versa. Generally, we provide 50mm, 60mm, 76mm, 89mm, etc.
All down the hole drill pipes are friction welded, and usually the threads are standard API connections, such as 23/8 "API REG threads, 3 1/2" API REG threads or API IF threads. According to customer requirements, 1000mm to 5000mm long drill pipes can be provided.

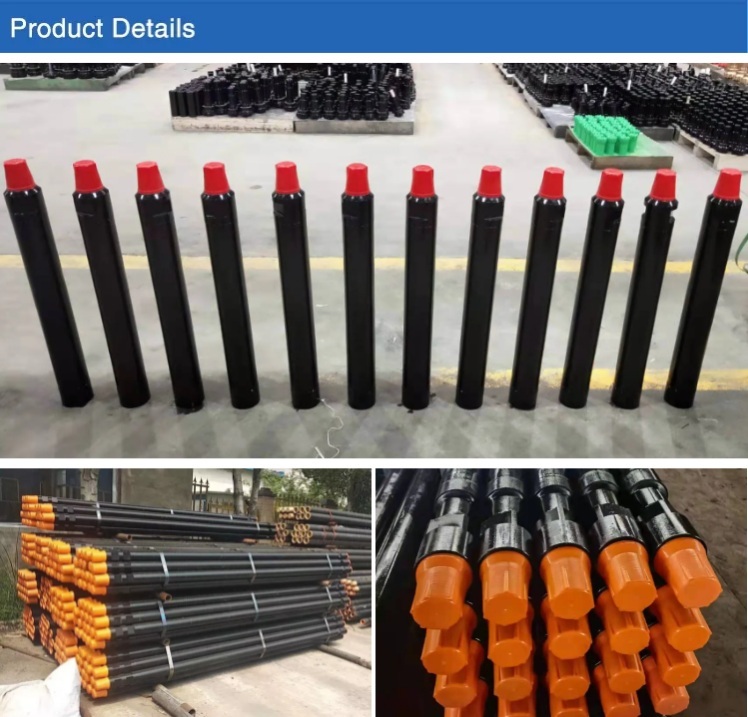

Product Show
